Introduction

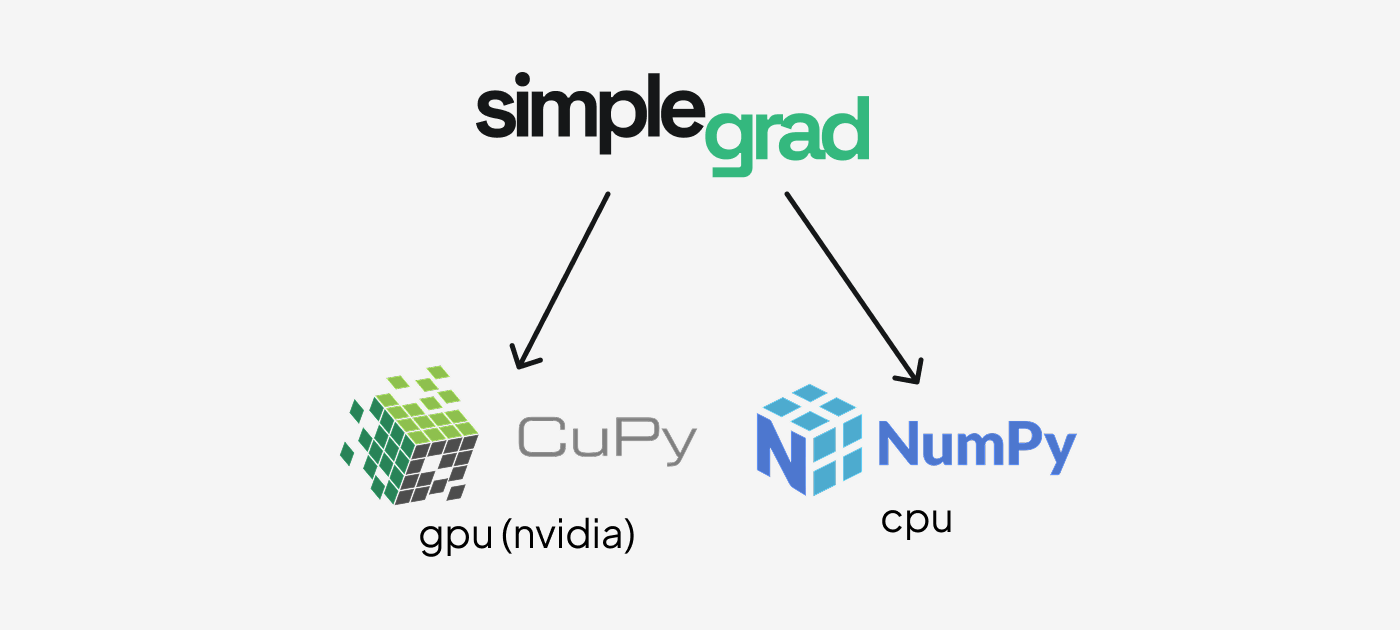

Simplegrad is an educational deep learning framework built on top of NumPy. Every part of the stack — from autograd to optimizers — is written in plain Python so that you can read the source, follow the math, and understand how modern deep learning works from the ground up.
Architecture

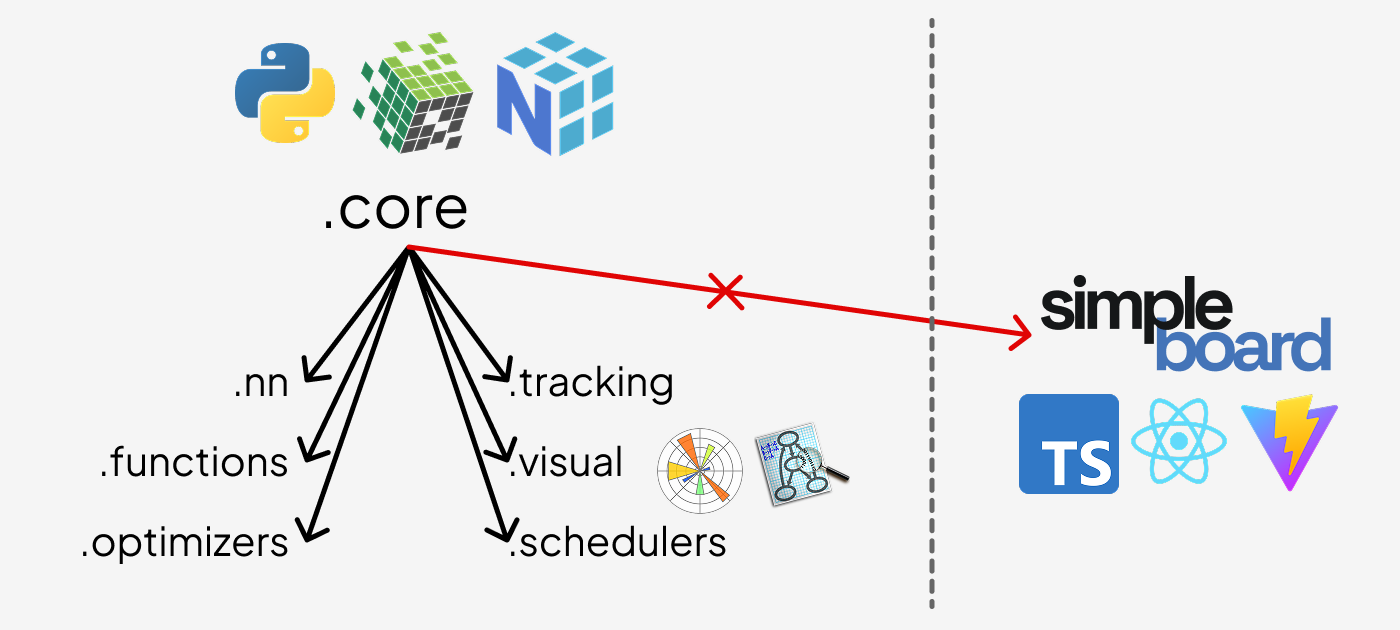

The package is organized in strict layers. Each layer may only import from layers below it:
core/ Tensor, autograd engine, base classes (Module, Optimizer, Scheduler)
↑
functions/ Differentiable math, activations, losses, pooling, conv
↑
nn/ High-level neural network layers (Linear, Conv2d, Dropout, ...)
↑
optimizers/ SGD, Adam
schedulers/ LinearLR, ExponentialLR, CosineAnnealingLR, ReduceLROnPlateauLR
Supporting modules (track/, visual/, simpleboard/) sit alongside this hierarchy and import from it but are not imported by it.
Module overview
core/ — The heart of the framework. autograd.py contains the Tensor class and the Function base class that every differentiable operation subclasses. The engine records the forward computation graph and walks it in reverse during .backward() to accumulate gradients via the chain rule. core/ also defines Module, Optimizer, and Scheduler base classes used throughout the rest of the package.
functions/ — A library of differentiable operations: element-wise math (log, exp, sin, cos), activations (relu, tanh, sigmoid, softmax), reductions (sum, mean), losses (ce_loss, mse_loss), 2D convolution, pooling, and shape transforms. Each operation subclasses Function and provides forward and backward static methods.
nn/ — Neural network layers that wrap the functional operations behind a stateful Module interface. Includes Linear, Conv2d, MaxPool2d, Dropout, Embedding, Flatten, Sequential, activation layers, and loss layers. All layers expose a .parameters() dict used by optimizers.
optimizers/ — Parameter update rules. SGD supports momentum and dampening. Adam maintains bias-corrected first and second moment estimates. Both accept any Module and call .parameters() to find what to update.
schedulers/ — Learning rate schedules that wrap an Optimizer and call .set_lr() on each .step(). LinearLR interpolates linearly between a start and end rate; ExponentialLR and CosineAnnealingLR are planned.
track/ — Experiment tracking backed by SQLite. Tracker lets you log scalar metrics at each training step, attach computation graphs to runs, and query historical results. Experiments are stored as .db files under a configurable directory.
visual/ — Inline visualizations for notebooks. graph() renders the computation graph of any tensor as a Graphviz SVG. plot() and scatter() draw training metric line and scatter charts with matplotlib.
Full training example
import simplegrad as sg
# Build a small classifier
model = sg.nn.Sequential(
sg.nn.Linear(4, 16),
sg.nn.ReLU(),
sg.nn.Linear(16, 3),
)
loss_fn = sg.nn.CELoss()
optimizer = sg.opt.Adam(model, lr=1e-3)
# Toy data
x_train = sg.Tensor([[0.1, 0.2, 0.3, 0.4]] * 8, label="x")
y_train = sg.Tensor([[1, 0, 0]] * 8, label="y")
# Training loop
for step in range(200):
optimizer.zero_grad()
logits = model(x_train)
loss = loss_fn(logits, y_train)
loss.backward()
optimizer.step()
if step % 50 == 0:
print(f"step {step} loss {loss.values:.4f}")
Lazy mode
By default simplegrad runs in eager mode: every operation executes immediately and returns a fully realized Tensor. Lazy mode defers execution until you call .realize(), which lets the engine fuse the whole computation into a single forward pass:
with sg.lazy():
a = sg.Tensor([1.0, 2.0])
b = sg.Tensor([3.0, 4.0])
c = a + b # not computed yet — c.values is None
d = sg.mean(c) # also deferred
d.realize() # executes the full graph in one shot
print(d.values) # 3.5
You can also toggle modes globally:
Experiment tracking
from simplegrad.track import Tracker
tracker = Tracker("./experiments")
tracker.set_experiment("mnist")
run_id = tracker.start_run(name="baseline", config={"lr": 1e-3})
for step in range(100):
# ... training step ...
tracker.record("loss", loss.values.item(), step=step)
tracker.end_run()
